Home > Optical Fiber Jumper >

2M SC UPC To LC UPC Optical Fiber Jumper 50/125um Simplex Patch Cord

Product Categories

Shenzhen Yutong Space Telecom Equipment Co., Ltd

Contact Now

2M SC UPC To LC UPC Optical Fiber Jumper 50/125um Simplex Patch Cord

Ask Lasest Price
Brand Name :	YT
Model Number :	Patch Cord LC/UPC-SC/UPC
Certification :	ISO, SGS, ROHS
Price :	Negotiation
Payment Terms :	XTransfer T/T, Western Union, PayPal
Supply Ability :	5000 pcs/Month
Delivery Time :	3-7days

Add to Cart

Product Details
Company Profile

2M SC UPC To LC UPC Optical Fiber Jumper 50/125um Simplex Patch Cord

Single Mode Simplex 2M SC/UPC-LC/UPC Optical Fiber Jumper

Description:

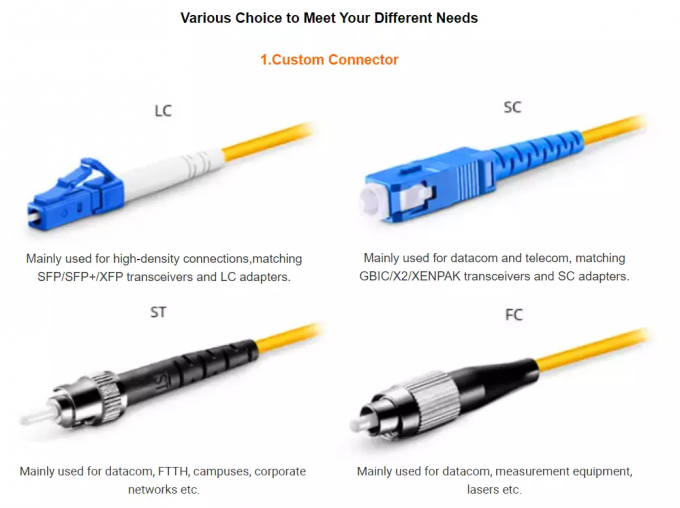

Fiber optic patch cord is becoming more popular for fiber installation project It is definitely an efficient and economical solution rather than on site termination or splicing. FC, SC, LC, ST connector are available SM or MM cables type Polishing: PC, UPC and APC Applicable to connect the cable.Fiber optic patch cord are used to connect to devices and are suitable for Gigabit Ethernet, multimedia, premise installations, fiber optics, Fiber optic transceiver panels and fiber optic network, industrial, and military applications. Connector function Dust plugs at the tips for protection.

Technical reference:

Patch cord Connector	UPC (SM)	APC (SM)	UPC (MM)	APC(MM)
Return Loss (dB)	≥50	≥60	≥30	≥30

Insertion Loss (dB)	≤0.2 (max≤0.3)
Repeatability (dB)	≤0.1
Durability(1/Matings)	≥500
Operation Temperature (°C)	-20~+70
Tensile Strength (N)	≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber type	SM 9/125um, MM 50/125um,MM 62.5/125um,ect
Diameter	0.9mm 2.0mm, 3.0mm etc
Cable material	LSZH / PVC
Cores	Simplex / Duplex

Features:

Low insertion loss, high return loss.
Excellent mechanical endurance.
High credibility and stability.
Good in repeatability and exchangeability.

Appplication:

FTTH, PON.
Local Area Networks.
Local ring net.
Optical fiber communication system.
Optical fiber test equipment.
Optical fiber sensor.
Industry and military application.
